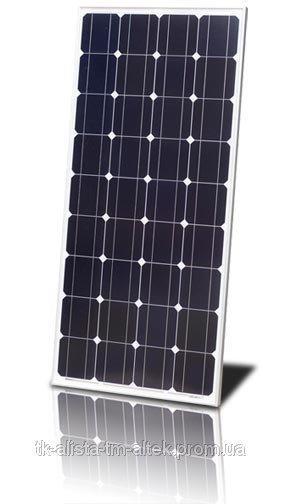

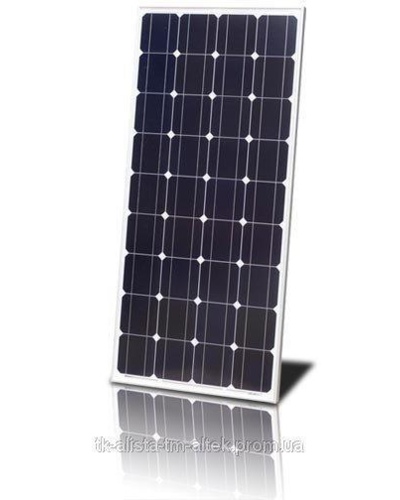

Monocrystalline solar module ALM-250 MA

The ALM-250 MA monocrystalline solar module is a single-piece unit capable of generating 250 W of power and is designed for use in 24V DC systems. The solar panel is a photovoltaic generator that converts light into electrical energy. The monocrystalline solar panel consists of textured tempered glass with hermetically laminated monocrystalline silicon photovoltaic cells, enclosed in an aluminum frame with an anti-corrosion coating and silver conductive busbars. ALM-250 MA monocrystalline solar panels can be connected in either series or parallel.

Keywords: Monocrystalline photomodule ALM-250 MA, Solar photomodules (batteries), Solar photomodules and components, Alternative energy sources, Monocrystalline photomodule ALM-250 MA, solar
Country of origin: China
Weight: 18.5 kg
Voltage: 30.49 V
Power: 250
Weight, kg: 18.5
Dimensions, mm: 1640x992x40
Open circuit voltage: 38 V
Panel type: Monocrystalline
Short circuit current: 8.78 A
Frame: Anodized aluminum alloy
Element type: Single crystal
Operating temperature, °C: from -40° to +80°C
Permissible power deviation,%: ±3
Short-circuit current, A: 8.78
Front glass: Low iron tempered glass
Maximum power, W: 250
Open circuit voltage, V: 38
Current at maximum power, A: 8.2
Maximum network voltage, V: 1000
Sealant: EVA
Voltage at maximum power, V: 30.49
Number of elements: 60 6x12
