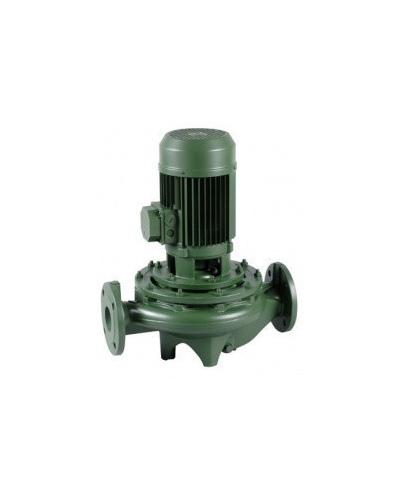

DAB CM-G 125-1560 flanged circulation pump

Purpose : Designed specifically for individual and collective heating and air conditioning systems.
Operating range : Capacity: from 1.2 to 420 cubic meters/hour, pressure – up to 41 meters of water column.
Maximum working pressure : 16 bar.
Pumped liquid. Composition: clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water. Temperature: from –10°C to +140°C.
Main materials. Hydraulic housing and motor support – cast iron, impeller – technopolymer or cast iron, rotor – stainless steel, seal – EPDM, shaft seal – graphite/ceramic or graphite/silicon carbide.
Features. External overload protection must be provided for motors. Twin models have a built-in reverse
Keywords: flanged heating pumps, industrial pumps, boiler pumps, wilo boiler pumps, DAB pumps, DAB pumps (Italy), flanged heating pump, pumps with flanged sockets, yes
Country of origin: Italy
15.6 months
24: cubic meters/hour
380~400V: kW
yes: Hz
