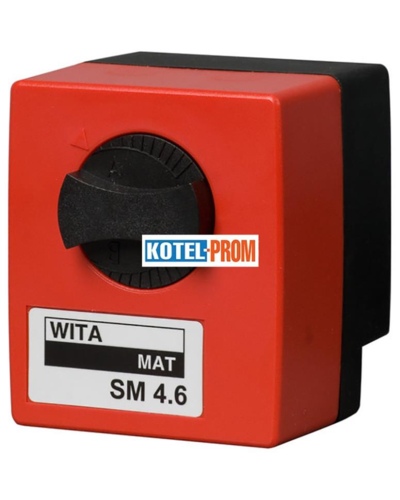

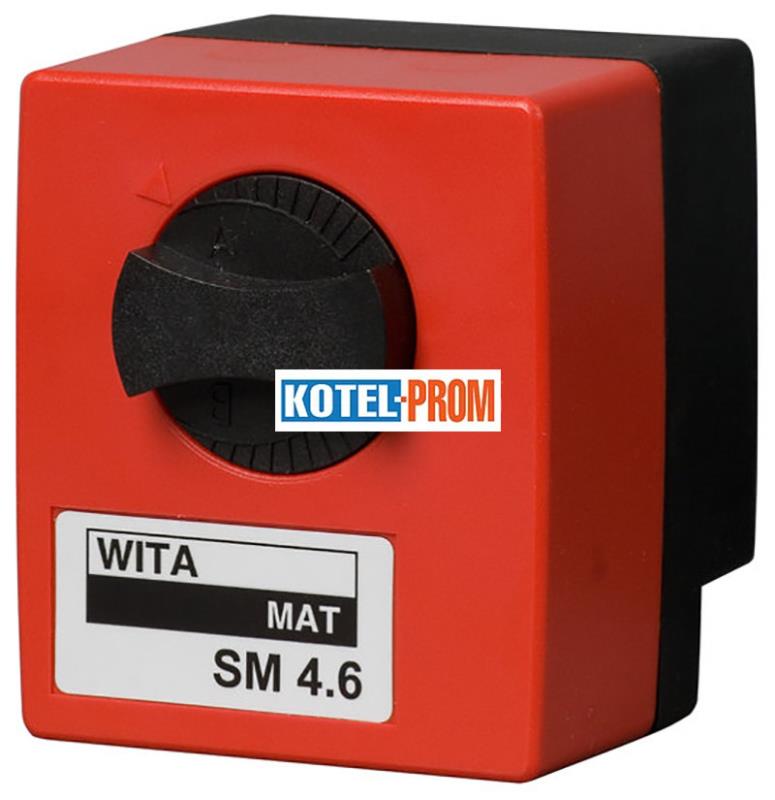

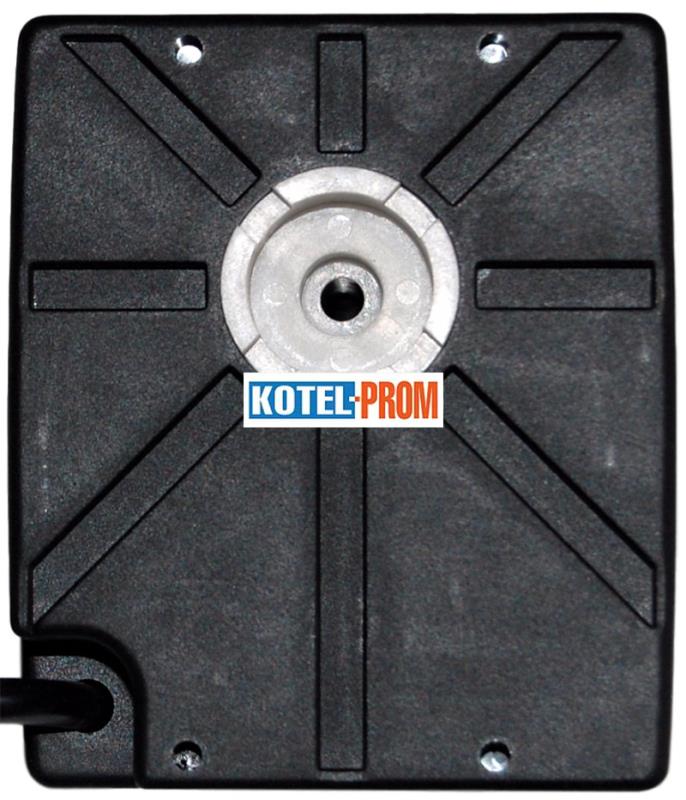

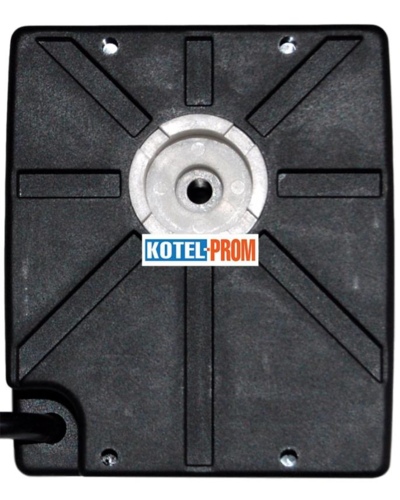

Electric servo drive Wita SM 4.6 (60 sec / 90 degrees)

Wita SM 4 rotary electric actuators are designed for use with WITA Minimix and Type H mixers. The appropriate torque and rotation time allow WITA SM 4 actuators to be connected to all mixer controllers used in modern networks. SM 4 actuators are characterized by their compact size and robust design. The plastic housing houses a transmission with a maximum torque of 6 Nm (brass Minimix and Type H valves) or 10 Nm (cast iron Type H mixers), a synchronous motor, and two limit switches.

Characteristics

Keywords: Electric servo drive Wita SM 4.6 (60 sec / 90 degrees), Heating, Components for heating equipment, Servomotors, components for heating equipment, spare parts for heaters
Condition: New
Body material: Plastic
Voltage: 220~240 V/ 50 Hz
Power consumption (W): 2.3
Protection class: IP40
Depth (mm): 85
Width (mm): 80
Built-in temperature controller: No
Rotation angle (deg.): 90
90° rotation time (sec): 60
Maximum ambient temperature (deg): 60
Height (mm): 93
Control signal: 3-point
Torque (Nm): 6
Drive installation: Horizontal/vertical
Cord length (m): 2
Weight (kg): 0.53
Servo motor type: Synchronous
