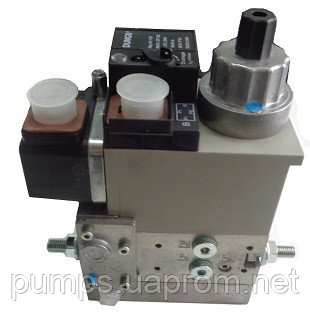

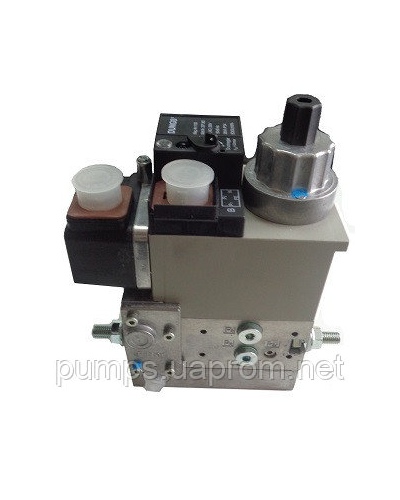

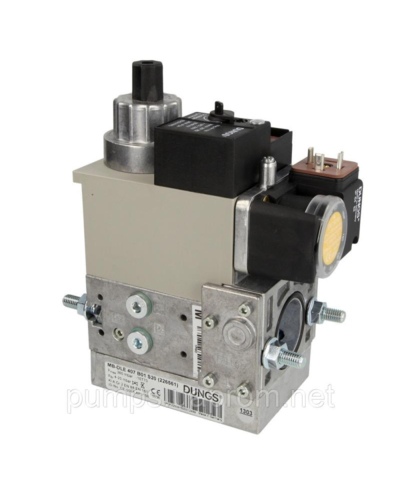

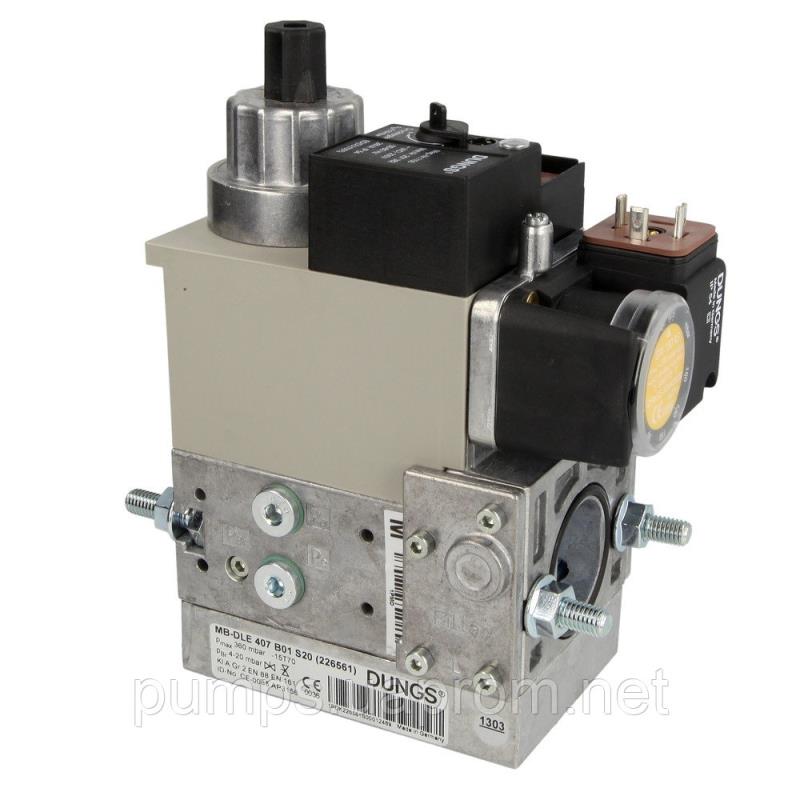

Dungs MB-DLE 405 B01 S20

The universal gas block manufactured by DUNGS is a compact fitting with built-in filters, regulators, valves and pressure switches.

Dungs MB DLE 405 B01 S20

The block design allows for the combination of the following components and characteristics:

– Dirt trap: fine filter
– Regulator and two valves: type B01
– Two quick-opening valves
- One fast and one slow opening valve
– Solenoid valves up to 360 mbar according to DIN EN 161, class A, group 2
– Highly sensitive regulation of the output pressure by a proportional-integral action regulator according to DIN EN 88, class A, group 2
– High flow coefficient at low pressure drop
– Electromagnetic drive of constant voltage, excitation degree N
– Throttle on valve V2, regulating the main gas flow
– Hydraulic opening delay
– Flanged connections with pipes
Keywords: gas fittings, gas valves dungs, dungs mb-dle 405 b01 s20, 226560, 226560, gas valves dungs 226560, dungs 226560, gas, fittings, gas, valves, dungs, mb-dle, 405, b01, s20, dungs
Country of origin: Germany
