 →  →  → Circulation pumps "SPRUT" GPD 9-35-600 with mating flanges

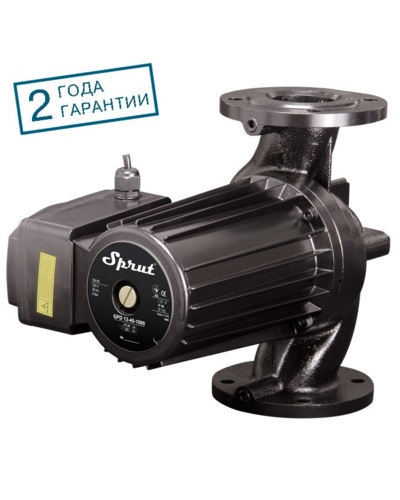

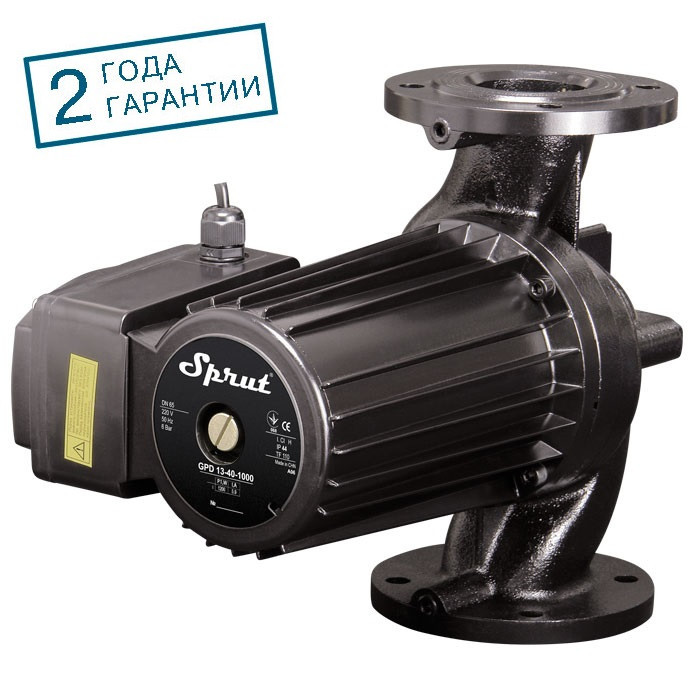

Circulation pumps "SPRUT" GPD 9-35-600 with mating flanges

Similar Products:
Article: 000021951

11347грн

In Stock

Order
in one click

Increase in pressure: Yes Working fluid: Clean, non-viscous, non-aggressive liquids containing no solid particles or fibres, similar to water in Number of speeds: 1 pc. Power consumption: 600 W Protection class of electronic equipment enclosures: IP44 Mains voltage: 220~240 V Bandwidth: 34 cubic meters/hour Current frequency: 50 Hz Frequency: 50 Hz Maximum pressure head: 8.2 m Pump installation: Horizontal/vertical Overheat protection: Yes Body material: Cast iron Maximum operating pressure: 10 bar Type of pump: For the heating system Weight: 18.2 kg Shaft: Stainless steel Minimum operating fluid temperature: 2 degrees Insulation heat resistance class: H Maximum ambient temperature: 40 degrees Maximum operating fluid temperature: 110 degrees Type of connection: Flanged Runner wheel: Centrifugal, closed type, made of stainless steel

Reviews: 0
Warranty:specify
Warranty Terms
Why Kotel-Prom?

  • All products are certified

  • Quality first

  • Return within 14 days

  • Warranty on all products

Delivery options:

  • Self-pickup(map)

  • Courier delivery in Kharkiv

  • Delivery across Ukraine

Payment methods

  • Cash on delivery

  • Non-cash payment

  • Bank transfer to card

  • Bank transfer to current account

GPD series circulation electric pumps are designed for pumping working fluids in single-pipe and two-pipe open and closed heating systems, including those using solar energy, heat pumps, and air conditioning systems with a stable or slightly changing flow rate of the working fluid.


Keywords: Circulation pumps "SPRUT" GPD 9-35-600 with counter flanges, Circulation pumps for heating, Domestic pumps (for the home), Circulation pumps SPRUT GPD 9-35-600 with counter flanges
Weight: 18.2 kg
Mains voltage: 220~240 V
Body material: Cast iron
Maximum head: 8.2 m
Frequency: 50 Hz
Maximum working pressure: 10 bar
Power consumption: 600 W
Capacity: 34 cubic meters/hour
Maximum ambient temperature: 40 degrees.
Pump type: For heating systems
Current frequency: 50 Hz
Protection class of electronic equipment housings: IP44
Pump installation: Horizontal/vertical
Maximum working fluid temperature: 110 degrees.
Rotor type: "Wet"
Overheat protection: yes
Number of speeds: 1 pc.
Minimum working fluid temperature: 2 degrees.
Increased pressure: yes
Shaft: Stainless steel
Insulation heat resistance class: H
Working wheel: Centrifugal, closed type, made of stainless steel
Working fluid: Clean, non-viscous, non-aggressive liquids, free from solid particles or fibers, similar to water in density and chemical activity
Engine: Asynchronous two-pole with squirrel-cage "wet" rotor
Connection type: Flanged
