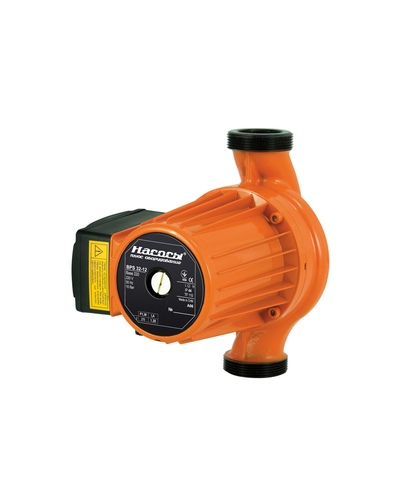

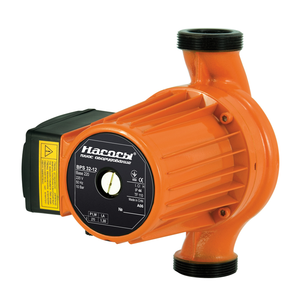

BPS32-12 Pumps Plus Equipment BPS 32-12-220

electric circulation pumps with a “wet” rotor

Limitation

• working conditions: pure, non-viscous, non-aggressive materials that do not interfere with solid parts or fibers, similar to water in strength and chemical activity
• caloric hardness of grain, not more than 700 mcg-eq/kg
• instead of half-life, not more than 500 mcg/kg
• instead of chopped sour, not more than 50 mcg/kg
• instead of naphtha products, no more than 1 mg/kg
• pH value 7.0-9.5
• maximum glycol content: 50%
• maximum working vice: 1 MPa (10 bar)
• The limiting lower and upper values of the central temperature range from -10 °C to + 110 °C
• maximum core temperature: +40 °C
• To eliminate cavitation noise, press on the mounted pipes with at least 1.5 m of water at a temperature of + 90 °C

Design characteristics

• monoblock horizontal with one worker
  Key words: Electric circulation pumps, BPS32-12
  Rotor type: wet
  Maximum tightness: 270
  Maximum pressure: 12.4
  Maximum productivity: 8.5
  Minimum heating temperature: -10
  Maximum temperature when heated: 110
  Optimal pressure: 8.2
  Outlet diameter: G2-B
  Optimal productivity: 4
  Inlet pipe diameter: G2-B
  Placement type: surface
  Water type: pure water
  Principle of action: central
  Type of pipe connection: thread
  Installation dovzhina: 220
  Quantity of liquids: 1
