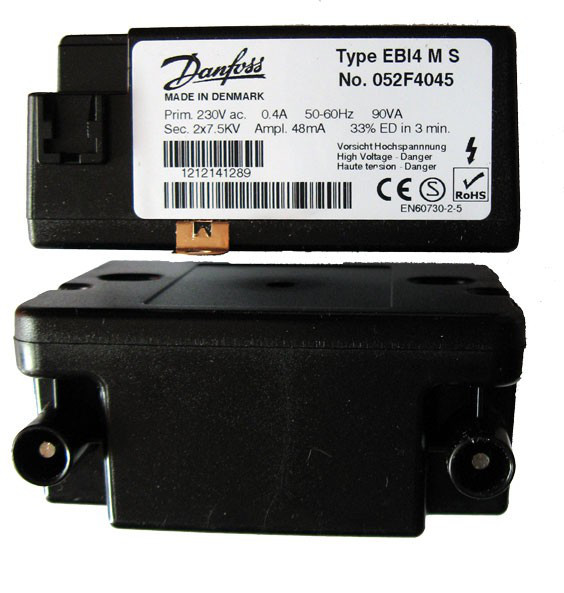

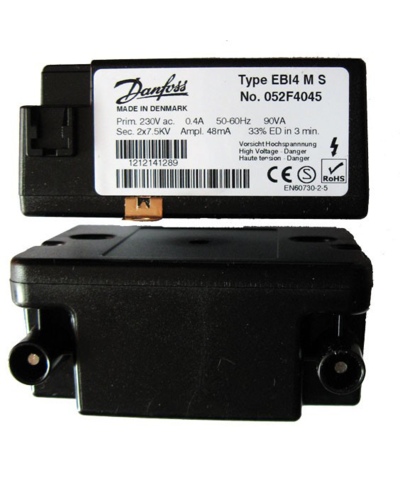

Danfoss EBI4 MS 052F4045 Ignition Unit

Danfoss EBI4 MS 052F4045 High Voltage Ignition Transformer for Burners

EBI4 ignition transformers are designed to ignite a combustible mixture using a high-voltage electric arc created between ignition electrodes.

The ignition transformer is designed to ignite the combustible mixture with a high-voltage electric arc created between the ignition electrodes.

The EBI4 high-frequency ignition transformer is designed for gas, fuel oil, and dual-fuel burners of any capacity. The EBI4 ensures an extended spark on a burner with high flame intensity or high combustion air velocity. It also produces the lowest electromagnetic interference of any electronic ignition device, which is especially important when the burner must comply with EN 55014 requirements. The EBI4 features low power consumption and peak current. The power cable connector is designed for a common, convenient 3-pin connector.
Keywords: Ignition unit Danfoss EBI4 MS 052F4045, Danfoss, Ignition units (high-voltage transformers), EBI, EBI4 MS, EBI 4, transformer, High-frequency, Danfoss, 052F4045, Ignition unit Danfoss EBI4 M
Country of origin: Denmark
I out: 48 mA ampl
U out: 2 x 7.5 kV
U in: 220-240 V
ED: 33% 3 min %
P max: 90 VA
I in: 0.4 A
