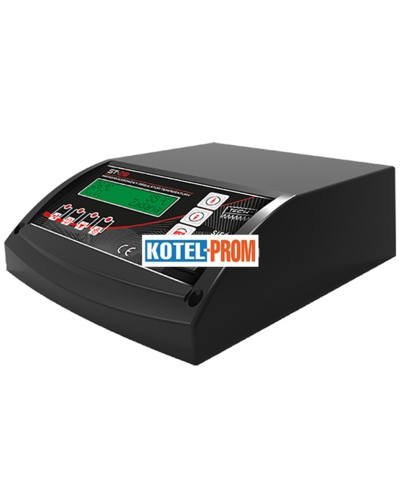

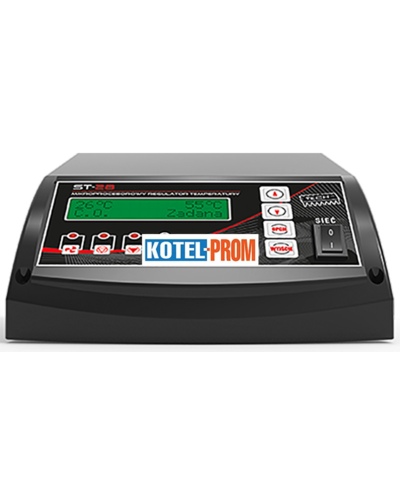

Automation for solid fuel boilers Tech ST-28 zPID

Energy prices are rising year after year, but stopping their use is simply impossible. The only solution is to learn to save. The Tech ST-28 zPID automation system is the best assistant in this difficult task. This control unit will not only reduce energy consumption but also significantly reduce the time spent on heating system maintenance. Optimized fuel consumption will ensure a comfortable room temperature without unnecessary costs.

Efficient consumption is the key to savings

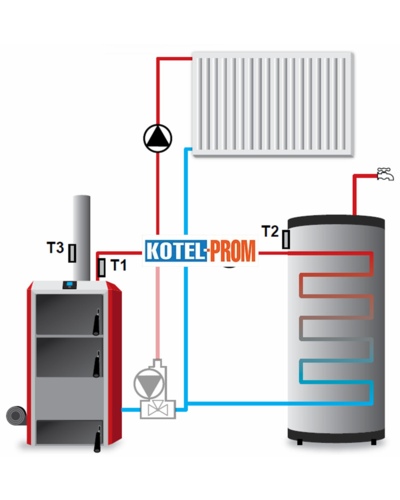

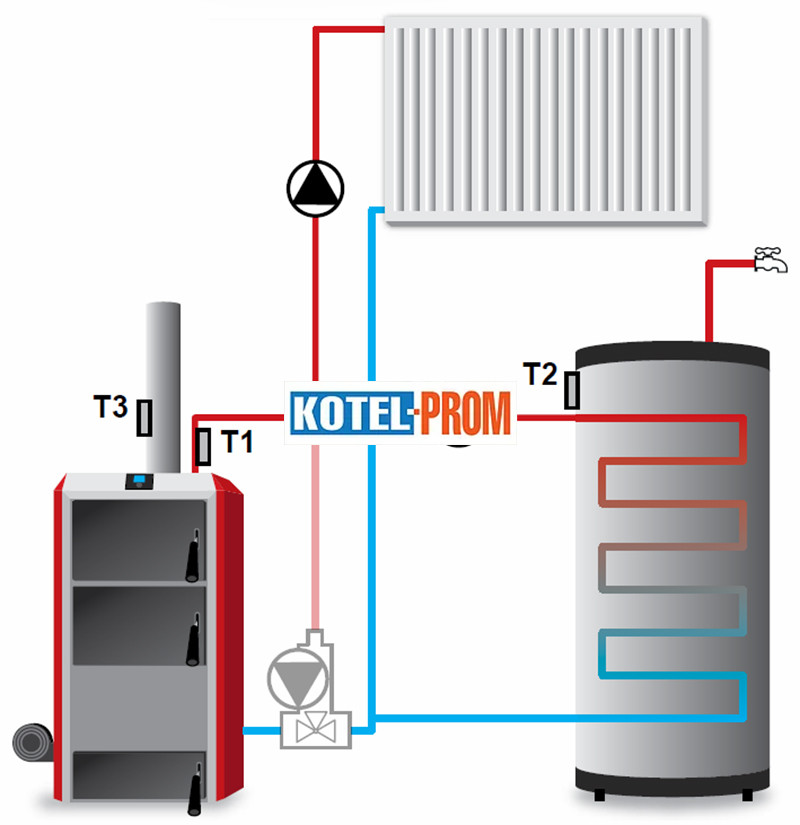

The controller ensures efficient system operation by regulating the blower fan, hot water supply pumps, and central heating. The Tech ST-28 zPID automation system fully controls the combustion process, from maintaining the desired temperature to monitoring safety.
Keywords: Automation for solid fuel boilers Tech ST-28 zPID, Heating, Components for heating equipment, Automation for heating equipment, Components for heating equipment,
Condition: New
Mains voltage: 220~240 V
Purpose of the component: For solid fuel boilers
Component type: Automatic
Possibility of connecting a room thermostat-program: No
Power consumption (W): 5
DHW pump control: Yes
Automatic control for: Manually loaded boilers
Fan control: Yes
Underfloor heating pump control: No
Fuel feed mechanism control (auger): No
Solar Collector Pump Control: No
Three-way valve control: No
Throttle Control: No
Second fan control: No
Recirculation pump control: No
Pellet burner control: No
Heating pump control: Yes
Flue gas temperature sensor: Yes
Lambda probe: No
Temperature setting range, °C: +45...+80
Heating pump or DHW pump control: No
Maximum temperature measurement range, up to °C: 85
Heating pump load, up to (A): 0.5
Fan load, up to (A): 0.6
Fuel level display function: No
Safety sensor (thermal): Yes
Load on the DHW pump, up to (A): 0.5
