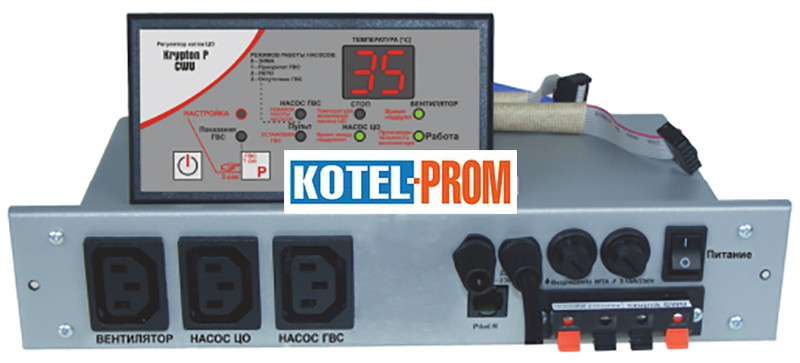

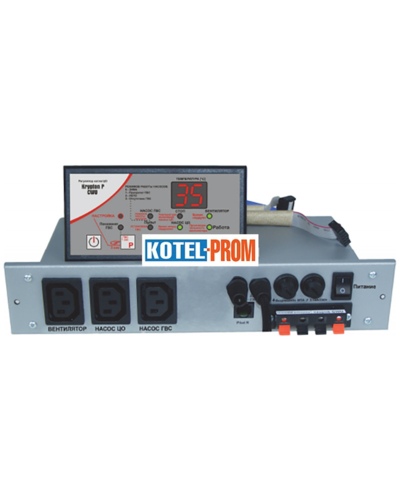

Automation for solid fuel boilers Prond Krypton PS CWU

Adjusting the operation of the blower fan and circulation pump is a task easily handled by the Prond Krypton PS CWU automation system. The control unit is designed specifically for solid fuel boilers to improve heating equipment performance and reduce maintenance costs. For maximum system customization, a room thermostat can also be used. The automation system is connected to the turbine and pump via IEC connectors. A temperature sensor, 3.15 A fuse, and power cable are other components of the housing.

Features of operation

Before starting the system, the user must set the optimal temperature parameters, which will then be automatically maintained by the controller. Fan speed control depends on
Keywords: Automatic control for solid fuel boilers Prond Krypton PS CWU, Heating, Accessories for heating equipment, Automatic control for heating equipment, accessories for heating equipment
Condition: New
Mains voltage: 220~240 V
Purpose of the component: For solid fuel boilers
Component type: Automatic
Possibility of connecting a room thermostat-program: Yes
Power consumption (W): 2
DHW pump control: Yes
Automatic control for: Manually loaded boilers
Fan control: Yes
Underfloor heating pump control: No
Fuel feed mechanism control (auger): No
Solar Collector Pump Control: No
Three-way valve control: No
Throttle Control: No
Second fan control: No
Recirculation pump control: No
Pellet burner control: No
Heating pump control: Yes
Flue gas temperature sensor: No
Lambda probe: No
Set temperature setting range, °C: 35...90
Heating pump or DHW pump control: No
Maximum temperature measurement range, up to °C: 100
Heating pump load, up to (A): 1
Anti-stop function: Yes
Anti-freeze function: Yes
Fan load, up to (A): 1
Fuel level display function: Yes
Load on the DHW pump, up to (A): 1
