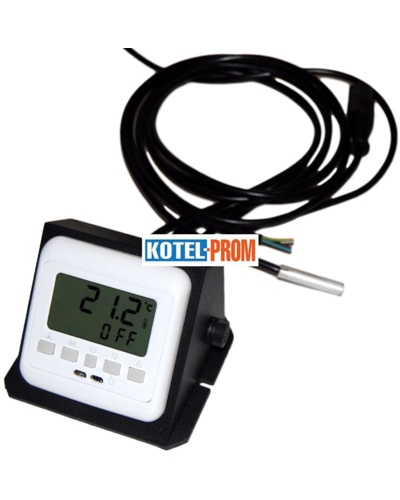

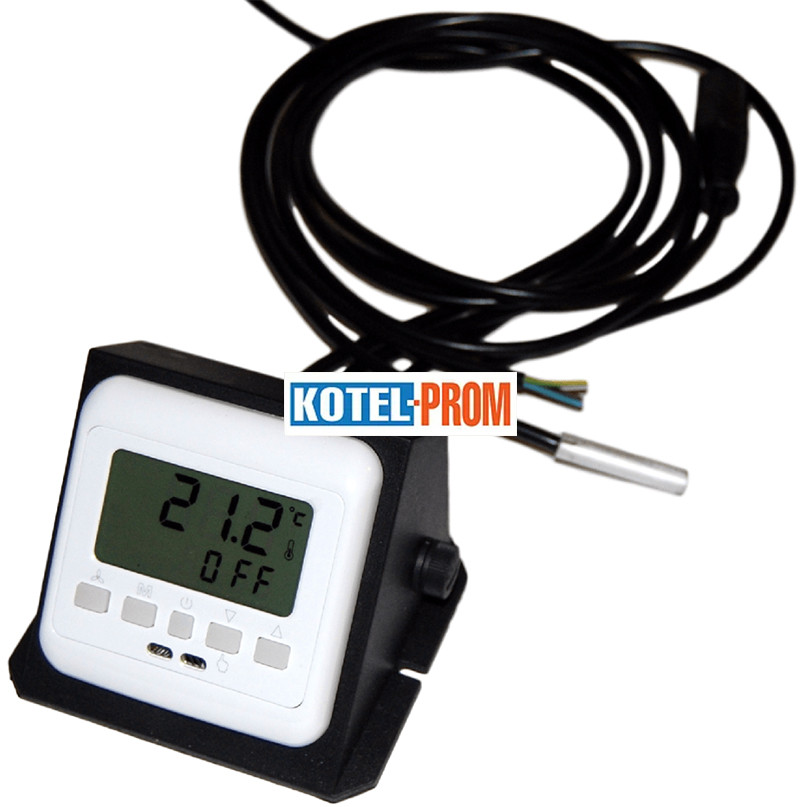

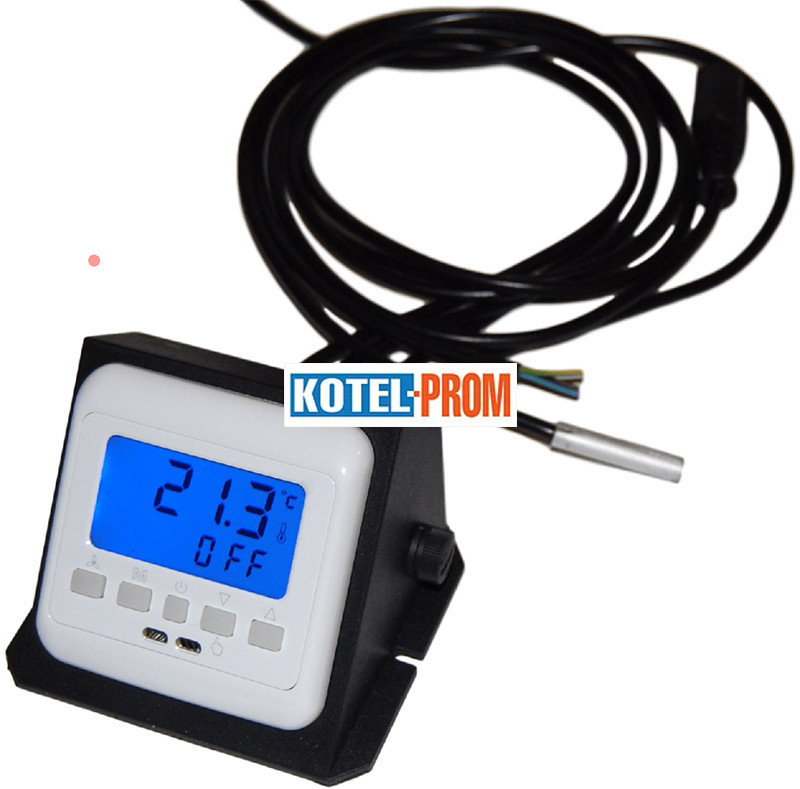

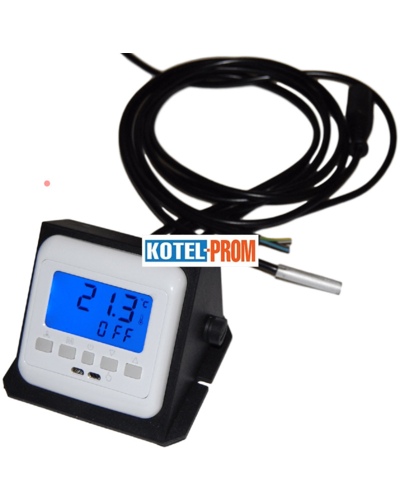

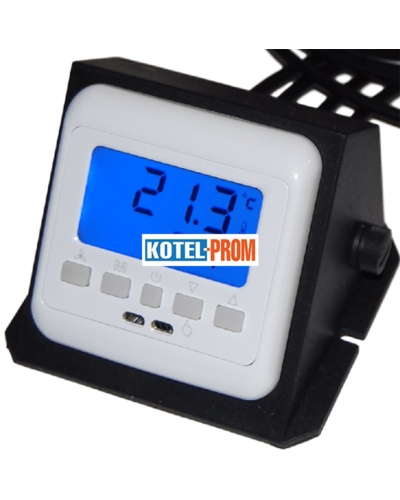

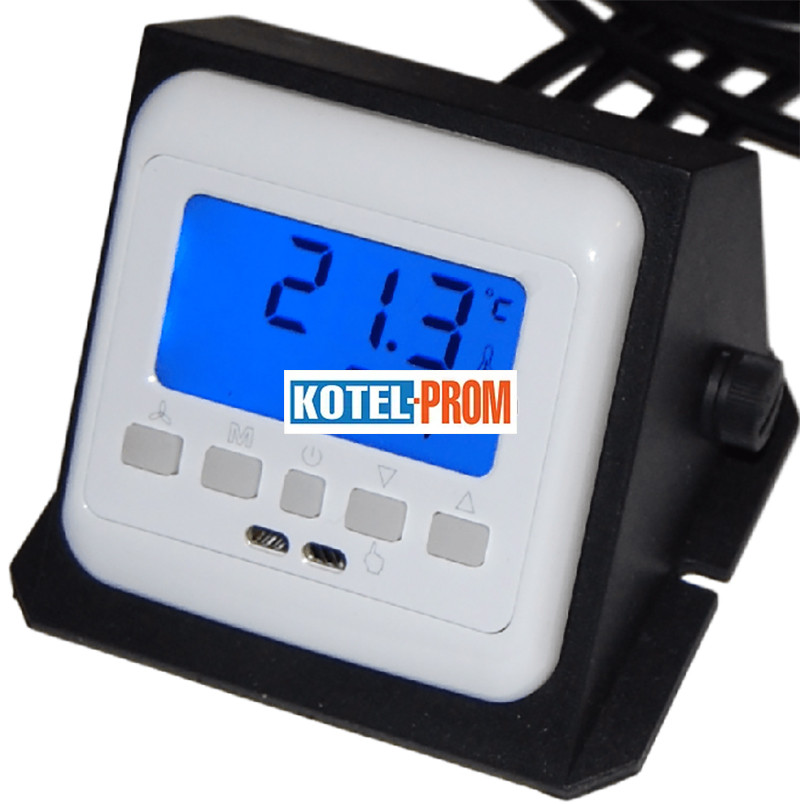

Nowosolar PK-06 Automatic Control for Solid Fuel Boilers

Ensuring normal temperature conditions in any room is easy with the Nowosolar PK-06 control unit for a solid fuel boiler. With this control unit, the renowned Polish manufacturer of heating components has eliminated the need for constant monitoring of the entire system. The controller automates the operation of the blower turbine, ensuring that airflow into the combustion chamber occurs at a specific frequency and intensity. This process optimizes combustion.

The Nowosolar PK-06 automation system for solid fuel boilers is connected to the circulation pump, which then operates within the set temperature range. A graphic display displays all operating processes. The controller allows the user to
Keywords: Automatic control for solid fuel boilers Nowosolar PK-06, Heating, Accessories for heating equipment, Automatic control for heating equipment, Accessories for heating equipment,
Condition: New
Mains voltage: 220~240 V
Purpose of the component: For solid fuel boilers
Component type: Automatic
Nominal voltage: 220 V
Power consumption (W): 2
DHW pump control: No
Automatic control for: Manually loaded boilers
Fan control: Yes
Underfloor heating pump control: No
Fuel feed mechanism control (auger): No
Solar Collector Pump Control: No
Three-way valve control: No
Throttle Control: No
Second fan control: No
Recirculation pump control: No
Pellet burner control: No
Heating pump control: Yes
Flue gas temperature sensor: No
Lambda probe: No
Set temperature setting range, °C: +30...+99
Heating pump or DHW pump control: No
Maximum temperature measurement range, up to °C: 99
Heating pump load, up to (A): 1
Warranty period (months): 12
Fan load, up to (A): 1
Fuel level display function: No
Length (mm): 45
