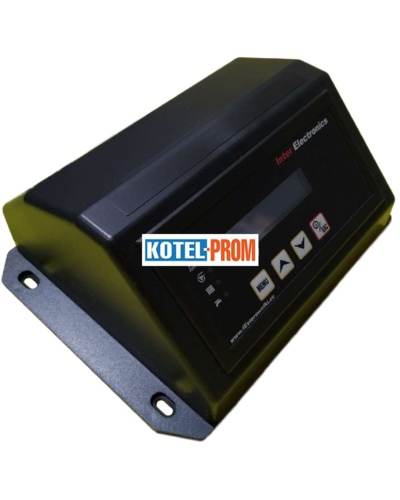

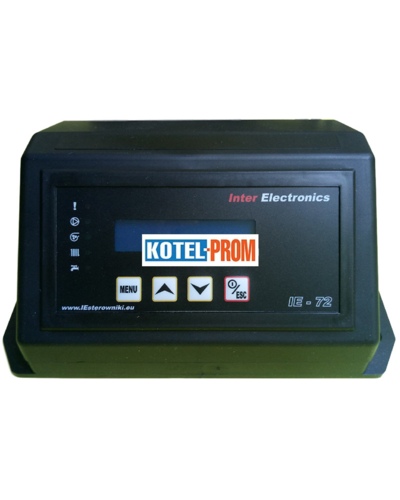

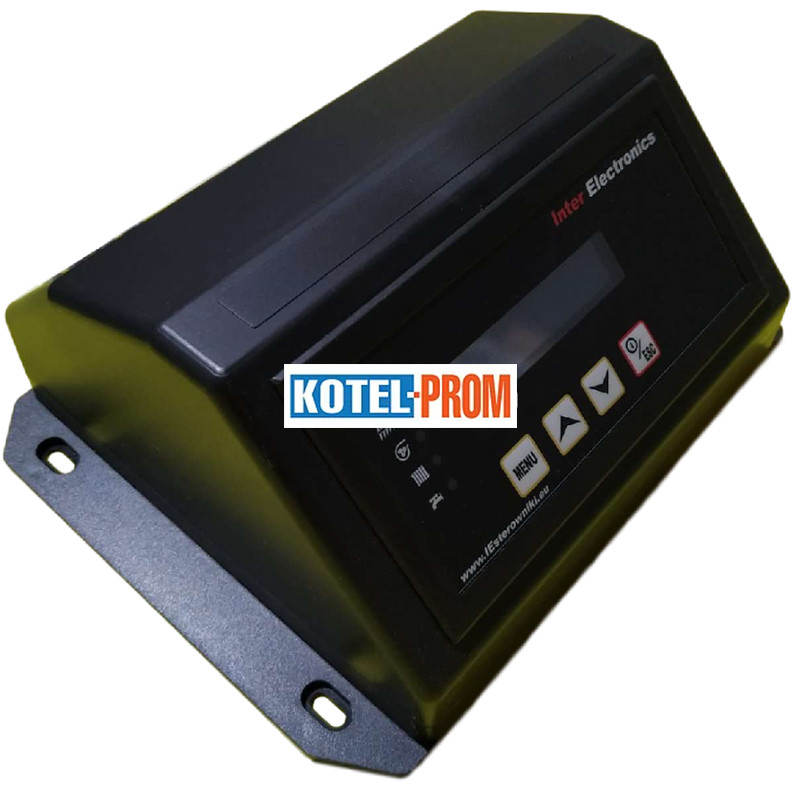

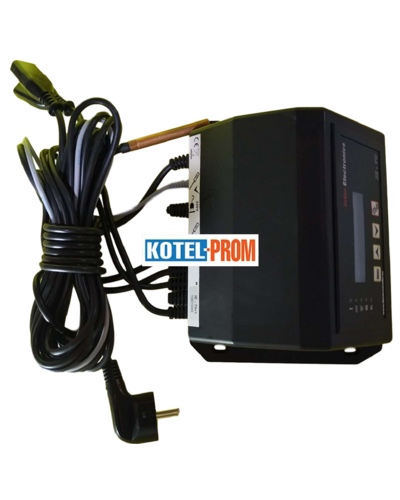

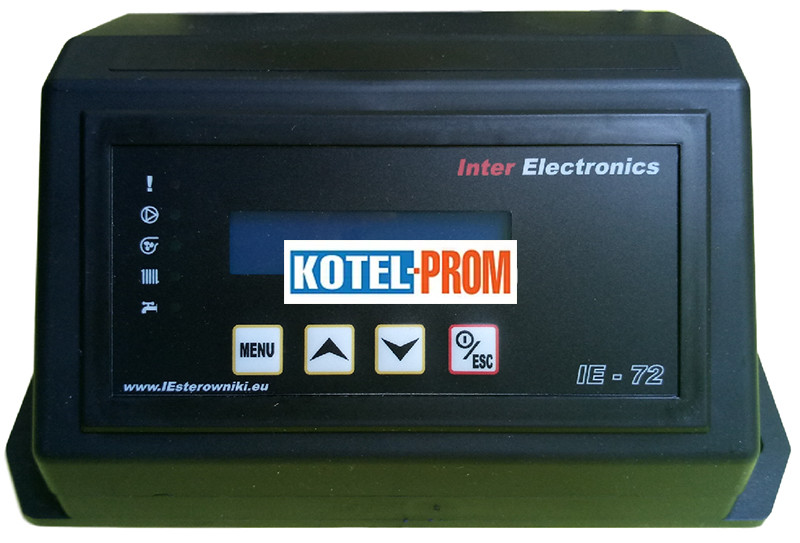

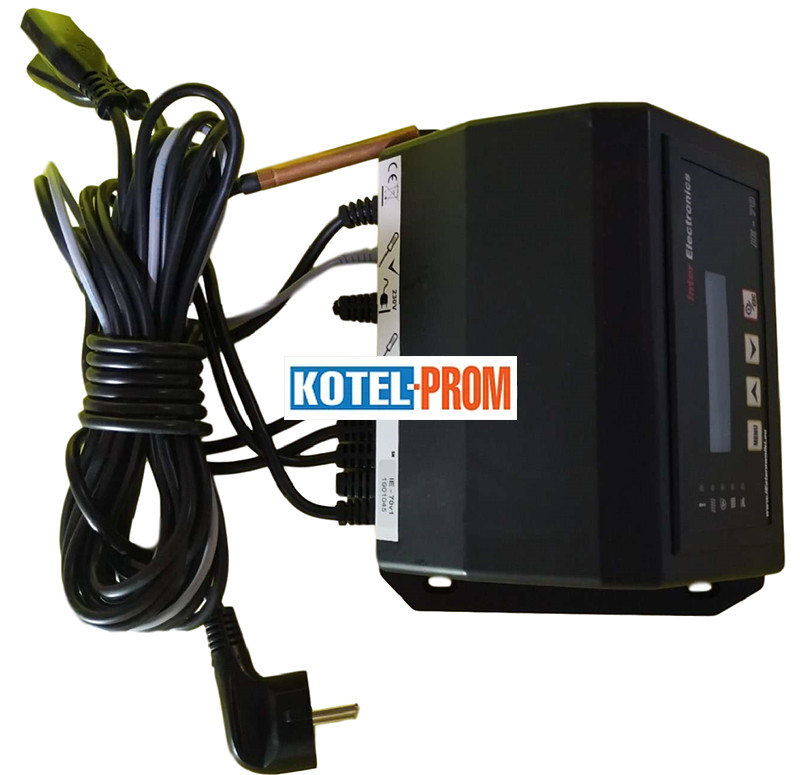

Automation for solid fuel boilers Inter Electronics IE-72 PID v3

The IE-72 PID v3 microprocessor temperature controller for the solid fuel heating boiler controls the blower fan and three circulation pumps: heating, DHW, and additional. The controller is equipped with an innovative PID control algorithm, which provides boiler operation with smooth adjustment of fan speed based on the temperature of the boiler coolant (water). Additionally, the boiler automation can be equipped with an RT-1000 flue gas sensor (purchased separately), which, when activated, provides more precise smooth adjustment of fan speed based on the exhaust gas temperature readings at the boiler outlet. The blower fan operates with smooth
Keywords: Automatic control for solid fuel boilers Inter Electronics IE-72 PID v3, Heating, Components for heating equipment, Automatic control for heating equipment, Components for heating
Condition: New
Mains voltage: 220~240 V
Purpose of the component: For solid fuel boilers
Component type: Automatic
Possibility of connecting a room thermostat-program: Yes
DHW pump control: Yes
Automatic control for: Manually loaded boilers
Fan control: Yes
Underfloor heating pump control: No
Fuel feed mechanism control (auger): No
Solar Collector Pump Control: No
Three-way valve control: No
Throttle Control: No
Second fan control: No
Recirculation pump control: No
Pellet burner control: No
Heating pump control: Yes
Flue gas temperature sensor: No
Lambda probe: No
Temperature setting range, °C: +35...+80
Heating pump or DHW pump control: Yes
Maximum temperature measurement range, up to °C: +100
Heating pump load, up to (A): 0.9
Anti-stop function: Yes
Anti-freeze function: Yes
Fan load, up to (A): 0.7
Fuel level display function: No
Load on the DHW pump, up to (A): 0.7
Load on the heating pump or DHW pump, up to (A): 0.7
