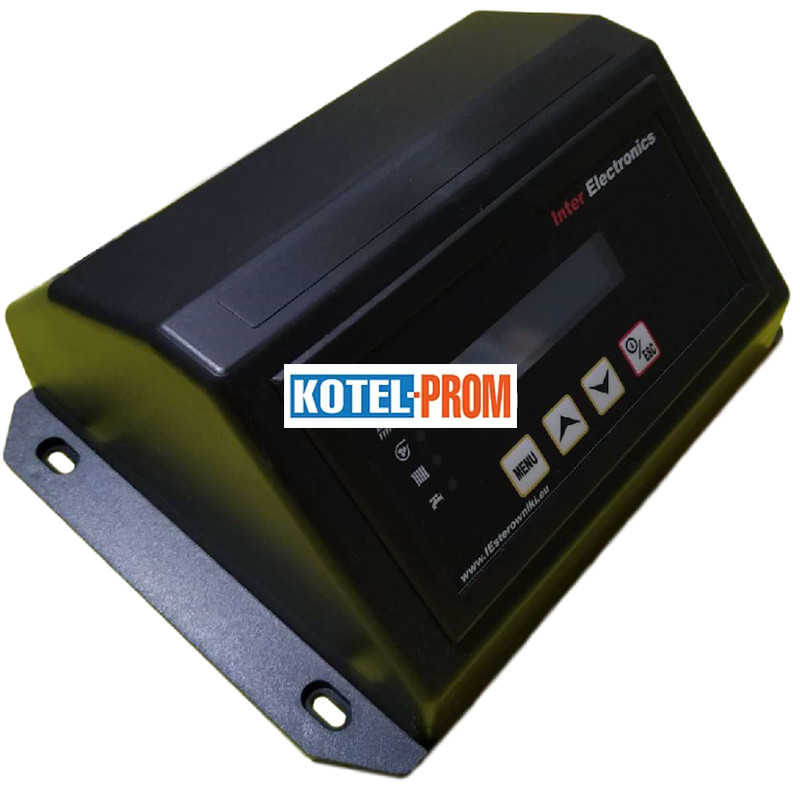

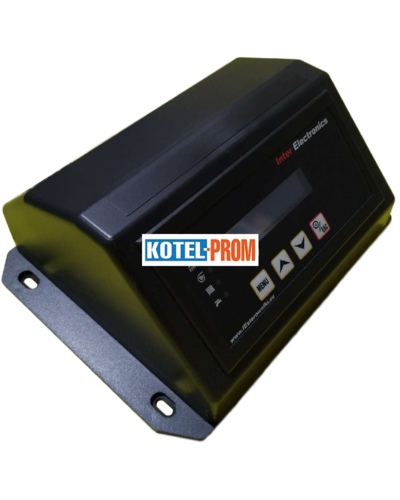

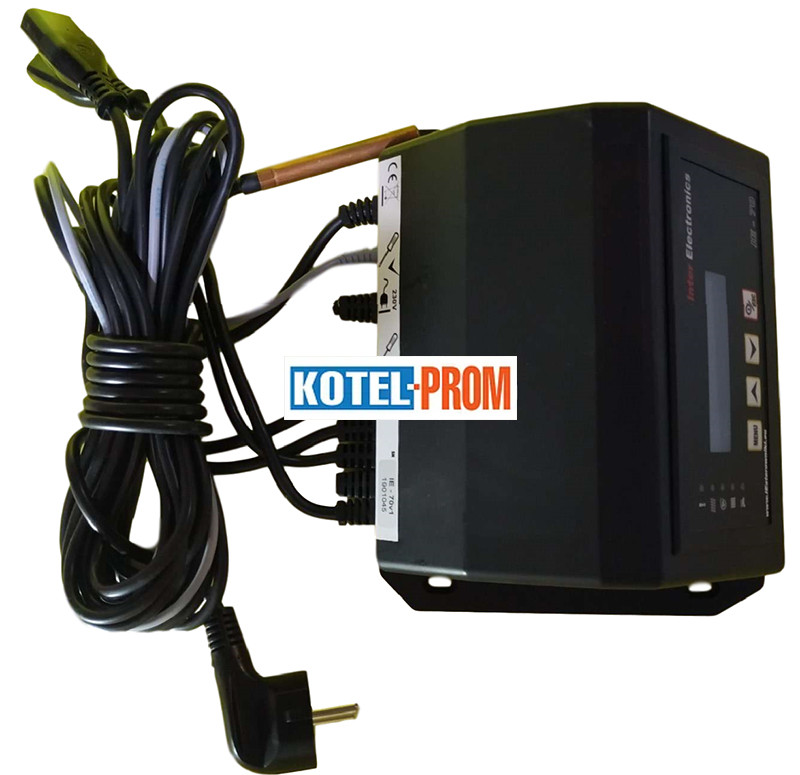

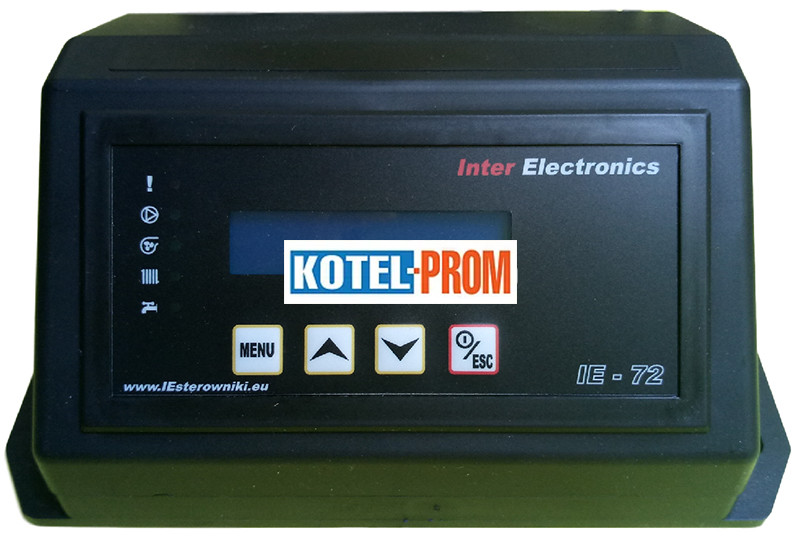

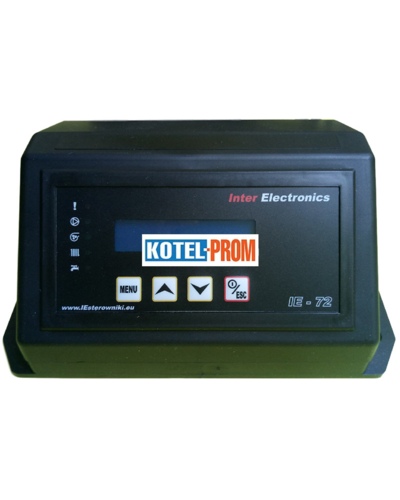

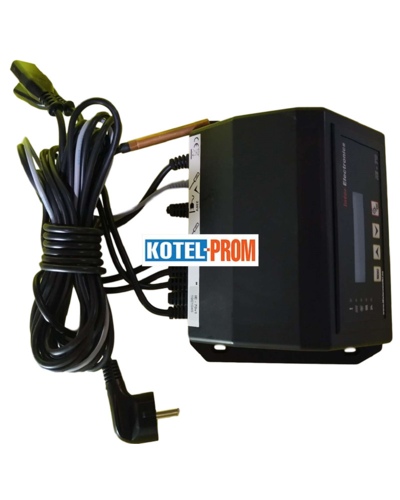

Automation for solid fuel boilers Inter Electronics IE-72 PID v2 T2

The IE-72 PID v2 microprocessor temperature controller for the solid fuel heating boiler controls the blower fan, the heating circuit circulation pump, and the DHW pump. The controller features an innovative PID control algorithm, which provides boiler operation with smooth fan speed adjustment based on the temperature of the boiler's coolant (water). Additionally, the boiler automation system can be equipped with an RT-1000 flue gas sensor (purchased separately), which, when activated, provides more precise smooth fan speed adjustment based on the exhaust gas temperature readings at the boiler outlet. Blower fan operation with smooth adjustment
Keywords: Automatic control for solid fuel boilers Inter Electronics IE-72 PID v2 T2, Heating, Components for heating equipment, Automatic control for heating equipment, Components for heating
Condition: New
Mains voltage: 220~240 V
Purpose of the component: For solid fuel boilers
Component type: Automatic
Possibility of connecting a room thermostat-program: Yes
DHW pump control: Yes
Automatic control for: Manually loaded boilers
Fan control: Yes
Underfloor heating pump control: No
Fuel feed mechanism control (auger): No
Solar Collector Pump Control: No
Three-way valve control: No
Throttle Control: No
Second fan control: No
Recirculation pump control: No
Pellet burner control: No
Heating pump control: Yes
Flue gas temperature sensor: No
Lambda probe: No
Temperature setting range, °C: +35...+80
Maximum temperature measurement range, up to °C: 100
Heating pump load, up to (A): 0.9
Anti-stop function: Yes
Anti-freeze function: Yes
Fan load, up to (A): 0.9
Fuel level display function: No
Load on the DHW pump, up to (A): 0.9
