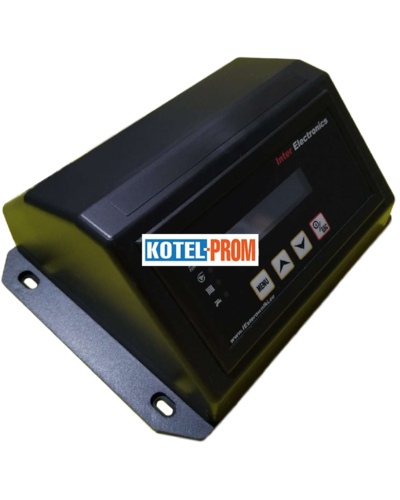

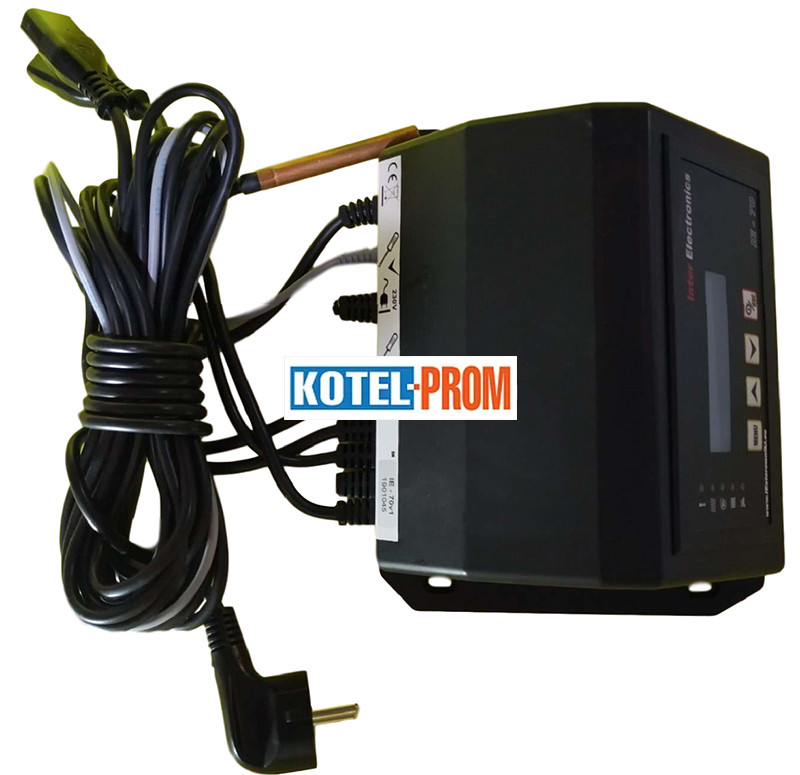

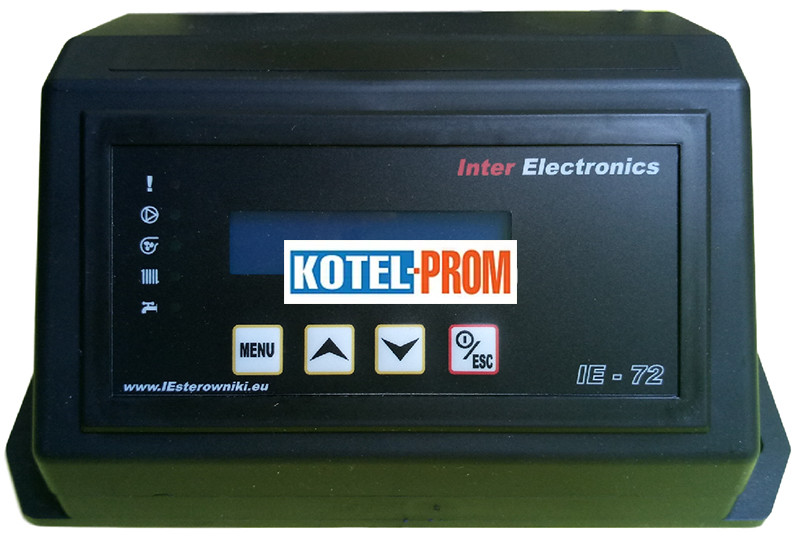

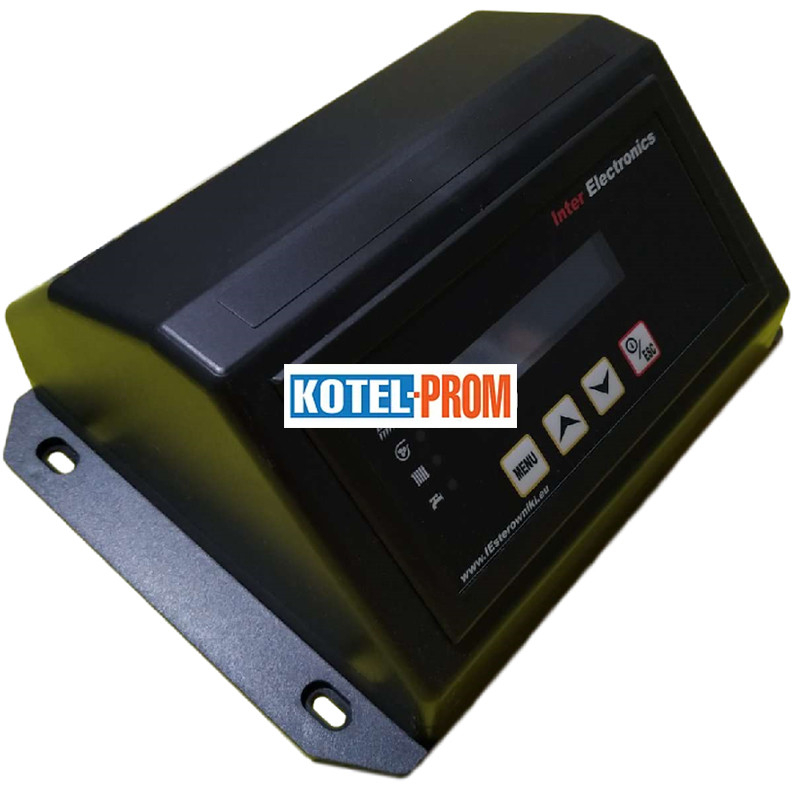

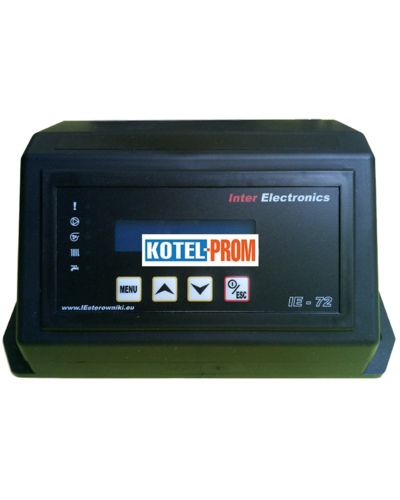

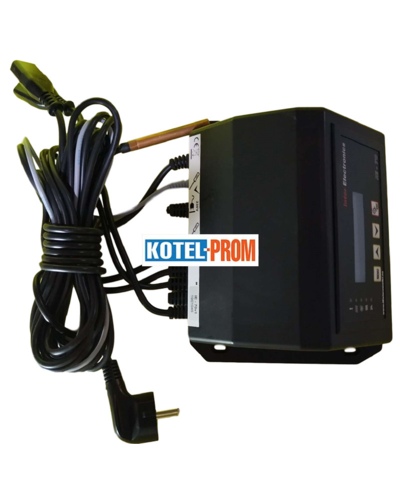

Automation for solid fuel boilers Inter Electronics IE-72 PID v1

The IE-72 PID v1 microprocessor temperature controller for the solid fuel heating boiler controls the blower fan and water circulation pump. The controller features an innovative PID control algorithm, which provides boiler control with smooth fan speed adjustment based on the temperature of the boiler coolant (water). Additionally, the boiler automation system can be equipped with an RT-1000 flue gas sensor (purchased separately). When activated, it provides more precise, smooth fan speed adjustment based on the exhaust gas temperature at the boiler outlet. The blower fan, with its smooth speed adjustment, stabilizes the temperature.
Keywords: Automatic control for solid fuel boilers Inter Electronics IE-72 PID v1, Heating, Accessories for heating equipment, Automatic control for heating equipment, accessories for heating
Condition: New
Mains voltage: 220~240 V
Purpose of the component: For solid fuel boilers
Component type: Automatic
Possibility of connecting a room thermostat-program: Yes
DHW pump control: No
Automatic control for: Manually loaded boilers
Fan control: Yes
Underfloor heating pump control: No
Fuel feed mechanism control (auger): No
Solar Collector Pump Control: No
Three-way valve control: No
Throttle Control: No
Second fan control: No
Recirculation pump control: No
Pellet burner control: No
Heating pump control: Yes
Flue gas temperature sensor: No
Lambda probe: No
Temperature setting range, °C: +35...+80
Maximum temperature measurement range, up to °C: +90
Heating pump load, up to (A): 0.7
Anti-stop function: Yes
Anti-freeze function: Yes
Fan load, up to (A): 0.45
Fuel level display function: No
Safety sensor (thermal): Yes
