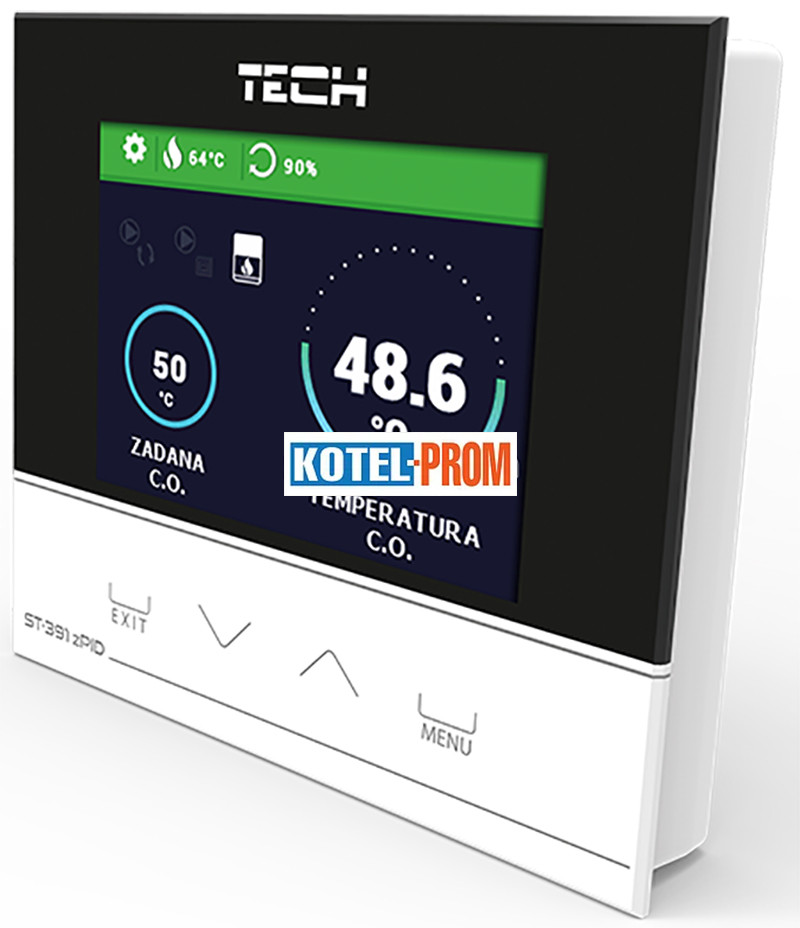

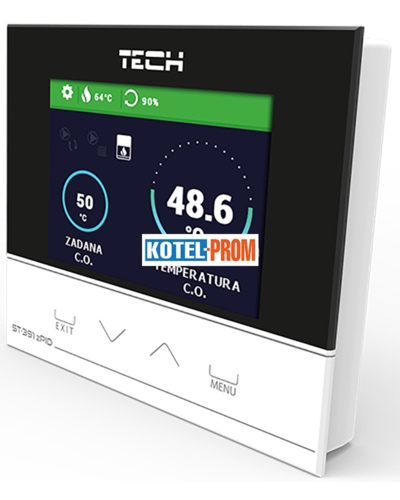

Tech ST-391 zPID d100 Fireplace Controls

The Tech ST-391 zPID controller is designed to control a fireplace with a water circuit. This controller operates the throttle valve, regulating the air supply depending on the set circuit temperature and the exhaust gas temperature. The TECH ST-391 zPID controller is also responsible for the operation of two pumps: central heating, hot water supply, or underfloor heating. A key feature is the presence of a voltage-free output for controlling an additional device (gas or electric boiler), which will turn on when the temperature in the heating system drops to the set temperature (the fireplace goes out). The controller is equipped with an exhaust (flue) gas sensor and PID control. This type of control monitors the flue gas outlet temperature (keeping it constant).
Keywords: Tech ST-391 zPID d100 Fireplace Automation, Heating, Heating Equipment Components, Heating Equipment Automation, Heating Equipment Components, Spare Parts
Condition: New
Mains voltage: 220~240 V
Purpose of the component: For fireplaces
Component type: Automatic
Power consumption (W): 4
DHW pump control: Yes
Automatic control for: Fireplaces with a water circuit
Fan control: No
Underfloor heating pump control: No
Fuel feed mechanism control (auger): No
Solar Collector Pump Control: No
Three-way valve control: No
Throttle Control: Yes
Second fan control: No
Recirculation pump control: No
Pellet burner control: No
Heating pump control: Yes
Flue gas temperature sensor: Yes
Lambda probe: No
Temperature setting range, °C: +30...+85
Heating pump or DHW pump control: No
Maximum temperature measurement range, up to °C: +99
Heating pump load, up to (A): 0.5
Fuel level display function: No
Load on the DHW pump, up to (A): 0.5
Throttle valve load, up to (A): 0.5
