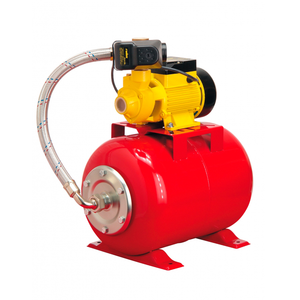

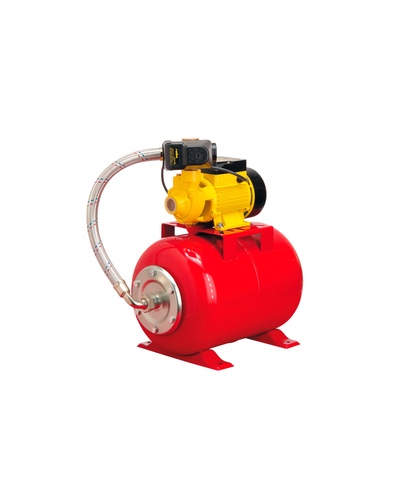

AUQB rudes AUQB60/24L

Pumping stations

12 MONTH WARRANTY

Limitation

• total mineralization of water: no more than 1500 g/m³
• pH indicator: from 6.5 to 9.5
• maximum pumped temperature: up to + 40°C
• instead of mechanical houses: no more than 20 g/m³ (no more than 0.05 mm)
• maximum core temperature: from +1°С to +45°С

Design characteristics

• Vikonana based on a vortex electric pump
• pump chamber housing with chavun
• robotic wheel - vortex, viconano made of brass
• combination shaft (AISI304, steel)
• reinforced end - graphite / ceramics / NBR / AISI 304
• mechanical relay
• hydraulic accumulator made of carbon steel with a volume of 24 l
• complete with cable

Dvigun

• asynchronous double-pole with squirrel-cage rotor, with self-valve
  Keywords: Pumping stations, AUQB
  Maximum tightness: 370
  Maximum pressure: 35
  Maximum productivity: 2.2
  Minimum heating temperature: 1
  Maximum temperature when heated: 40
  Optimal pressure: 18
  Outlet diameter: G1-B
  Optimal productivity: 1.2
  Maximum size of patches: 0.05
  Inlet pipe diameter: G1-B
  Installation height: 6
  Hydraulic accumulator capacity: 24
