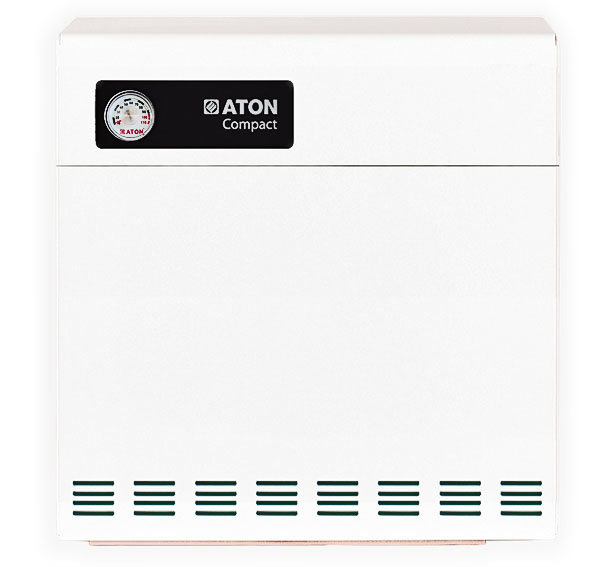

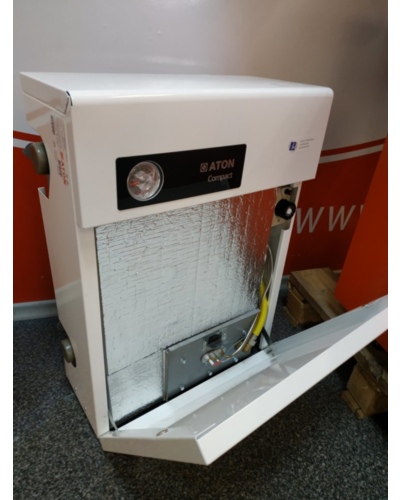

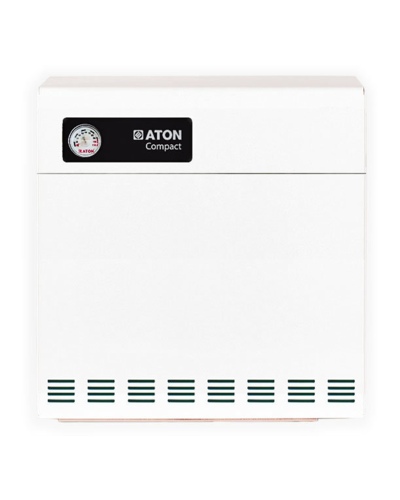

ATON Compact 10E

ATON Compact 10E (Aton AOGVMND-10E) - parapet, single-circuit gas heating boiler, heated area - 100 m2, power - 10 kW, gas consumption - 1.2 m3 / hour, automation "EUROSIT", dimensions (HxWxD) - 700x520x270 mm.

The AOGVMND-10E is a parapet, single-circuit gas heating boiler from ATON (AOGVMND-10E) . The boilers utilize safety and control automation from EUROSIT - Sit Group (Italy).

Main characteristics:

• Nominal thermal power, kW: 10±0.5
• Heat exchanger material: Steel
• Efficiency, not less than, %: 90
• Fuel: Natural gas according to GOST 5542
• Nominal gas pressure, Pa: 1274±100
• Volume of water in the boiler, not less than, l: 15
• Temperature of combustion products at the boiler outlet, not less than, °C: 110
• Air consumption volume of the boiler, m^3/h: 12±1.2
• Thickness of the external wall of the room
