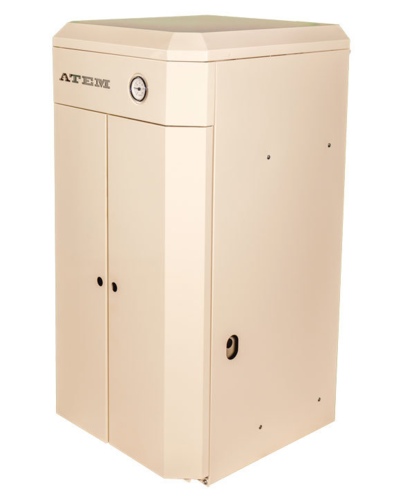

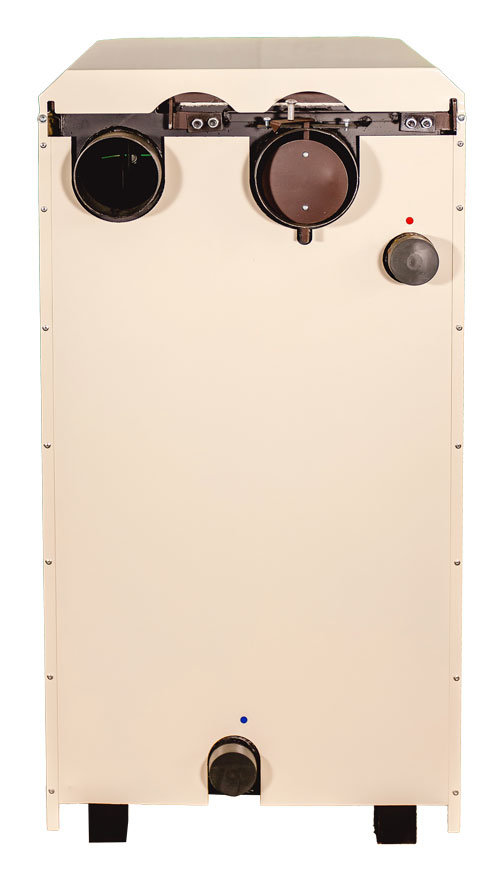

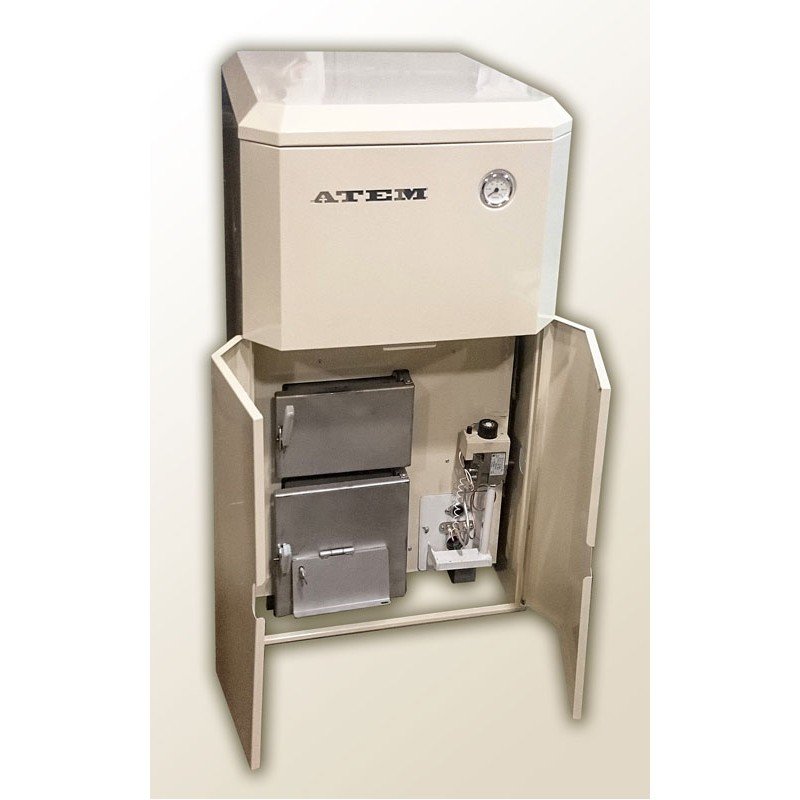

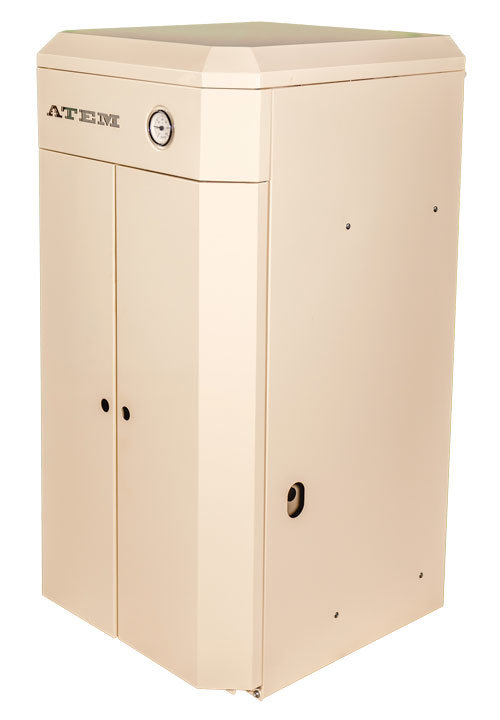

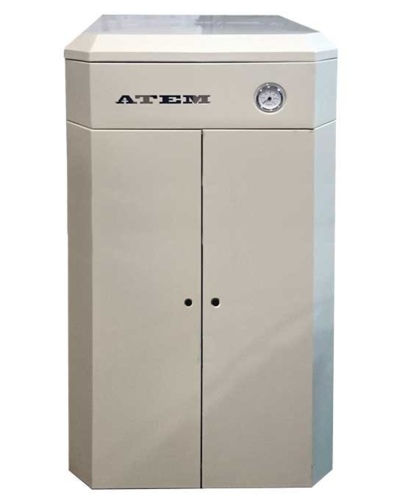

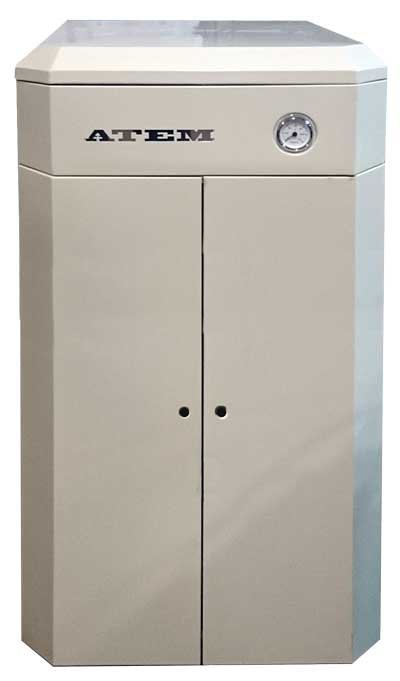

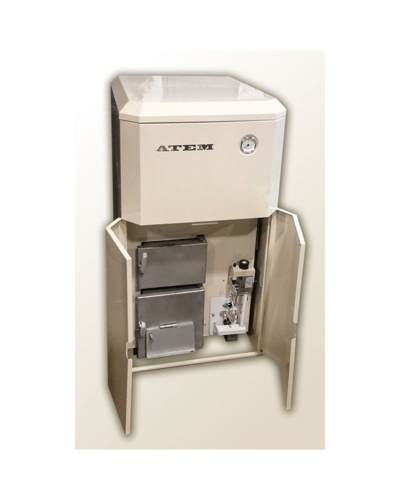

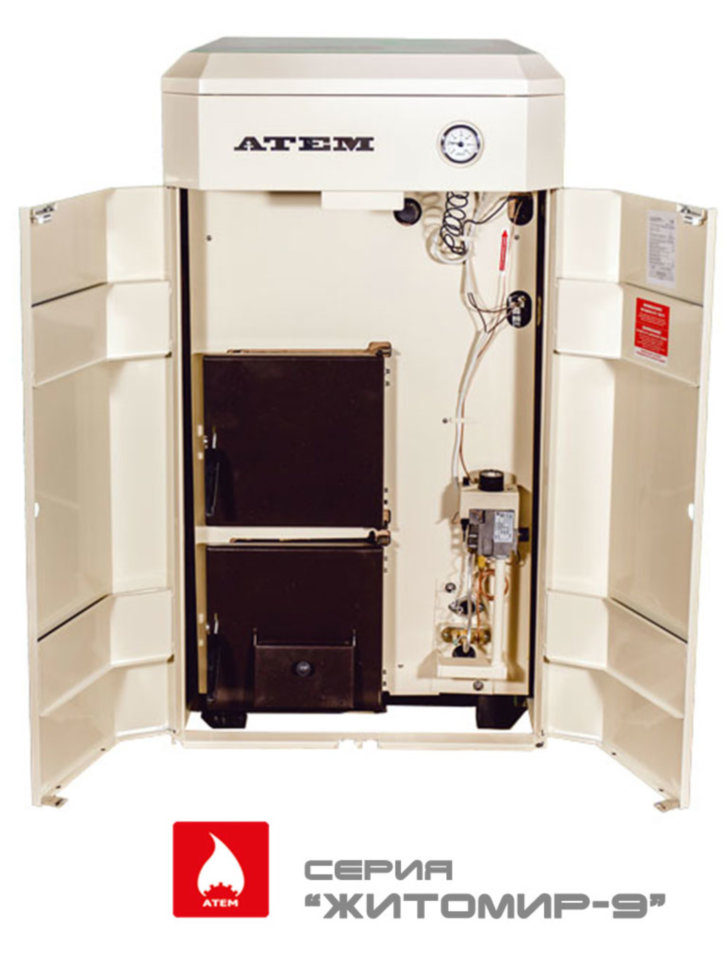

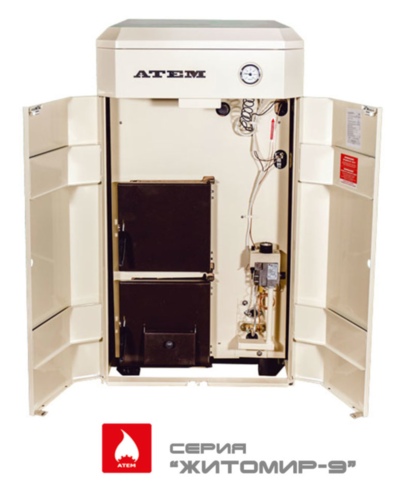

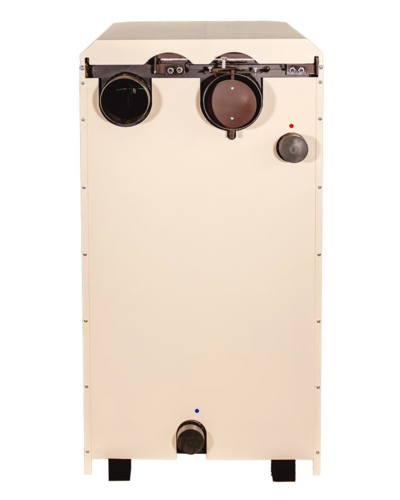

ATEM Zhitomir-9 KS-G-020 SN / AOTV-15

ATEM Zhitomir KS-G-020 SN / AOTV-15 - 20 kW / 16 kW, single-circuit, combined boiler, gas / solid fuel, energy-independent, simultaneous operation on both types of fuel is possible, chimney.

Main characteristics:
Fuel combustion efficiency (COP) gas/fuel, not less than %: 92/78
Coolant: Water pH 7+03
Maximum water temperature at the boiler outlet, no more than °C: 90
Recommended coolant temperature, °C: 60-80
Working pressure of the coolant, no more than, MPa (kg/cm2): 0.1(1)
Vacuum behind the boiler, Pa, no more than: 25/10
Nominal thermal power when operating on gas/solid fuel: 20/15
Heated area when operating on gas/solid fuel, m2, up to: 200/150
Volume of water in the boiler, l: 63
Duration of the working cycle, hours: 8
Firebox size, mm: 450x315x500
Anthracite consumption kg/hour, gas m3/cube: 2.3/2.24
Nominal bore of connecting pipes to the heating system, mm: 50
Overall dimensions,
