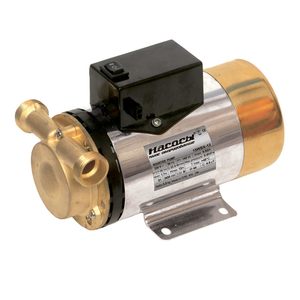

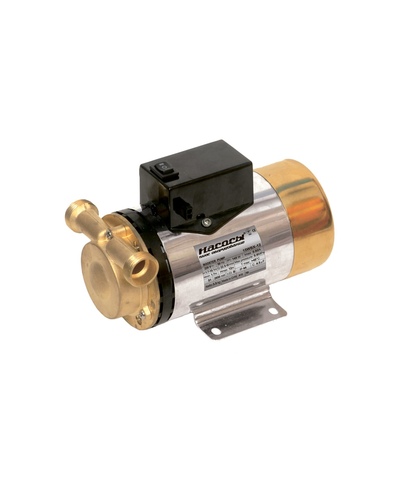

15WBX Pumps plus equipment 15WBX-12

electric vortex pumps

24 MONTH WARRANTY

Limitation

• medium: water or other mediums similar to water in terms of thickness and chemical activity
• complete mineralization of water, no more than 1500 g/m³
• pH indicator 6.5 - 9.5
• instead of mechanical houses, no more than 20 g/m³
• maximum particle size, no more than 0.05 mm
• maximum temperature: +40°C
• maximum core temperature: +40°С
• maximum working vice: 0.6 MPa (6 bar)

Design characteristics

• monoblock horizontal with one impeller
• pump chamber body made of brass
• robotic wheel - vortex, viconano made of brass
• shaft made of stainless steel AISI 304
• reinforced end - graphite / ceramics / NBR / AISI 304
• complete with flow sensor
• nuts are included in the kit
•
  Key words: Advance electric pumps, 15WBX
  Maximum tightness: 145
  Maximum pressure: 12
  Maximum productivity: 31.3
  Minimum heating temperature: 1
  Maximum temperature when heated: 40
  Optimal pressure: 5.7
  Outlet pipe diameter: GВѕ-B
  Optimal productivity: 0.9
  Maximum size of patches: 0.05
  Inlet pipe diameter: GВѕ-B
  Installation dovzhina: 100
